Description
| CPU | Supports 1st, 2nd and 3rd Gen AMDÆ Ryzenô, Ryzenô with Radeonô Vega Graphics, 2nd Gen AMDÆ Ryzenô with Radeonô Graphics, Athlonô with Radeonô Vega Graphics, A-series and Athlonô X4 Desktop Processors for Socket AM4 |
| Chipset | AMD A320 Chipset |
| Memory | 2x DDR4 memory slots, support up to 32GB |
| Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) | |
| Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE) | |
| Dual channel memory architecture | |
| Supports ECC UDIMM memory (non-ECC mode) | |
| Support non-ECC UDIMM memory | |
| Expansion Slot | 1x PCIe 3.0 x16 slot |
| Supports x16 speed | |
| 1st, 2nd and 3rd Gen AMD Ryzenô | |
| Supports x8 speed | |
| Ryzenô with Radeonô Vega Graphics | |
| 2nd Gen AMD Ryzenô with Radeonô Graphics | |
| A-series | |
| Athlonô X4 Supports x4 | |
| speed | |
| AMDÆ Athlonô with Radeonô Vega Graphics | |
| 1x PCIe 2.0 x1 slot | |
| Onboard Graphics | 1x VGA port, supports a maximum resolution of 2048x1280 @60Hz1 |
| 1x HDMIô 1.4 port, supports a maximum resolution of 4096x2160 @24Hz2 | |
| 1)Only support when using the processor with Graphics | |
| 2)Maximum shared memory of 2048 MB | |
| Storage | AMD A320 Chipset |
| 4x SATA 6Gb/s ports | |
| Supports RAID 0, RAID1 and RAID 10 | |
| 1x M.2 slot (Key M) | |
| Supports PCIe 3.0 x4 and SATA 6Gb/s | |
| 1st, 2nd and 3rd Gen AMD Ryzenô Ryzenô with Radeonô Vega Graphics | |
| 2nd Gen AMD Ryzenô with Radeonô Graphics | |
| Supports PCIe 3.0 x2 and SATA 6Gb/s | |
| AMDÆ Athlonô with Radeonô Vega Graphics | |
| A-series | |
| Athlonô X4 | |
| Supports 2242/ 2280/ 22110 storage devices | |
| USB | 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) |
| 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors | |
| Audio | RealtekÆ ALC892/ALC897 Codec |
| 7.1-Channel High Definition Audio | |
| LAN | 1x RealtekÆ8111H Gigabit LAN controller |
| Internal connectors | 1x 24-pin ATX main power connector |
| 1x 4-pin ATX 12V power connector | |
| 4x SATA 6Gb/s connectors | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin system fan connector | |
| 1x Front panel audio connector | |
| 2x Front panel connectors | |
| 1x TPM module connector | |
| 1x Chassis Intrusion connector | |
| 1x Serial port connector | |
| 1x Clear CMOS jumper | |

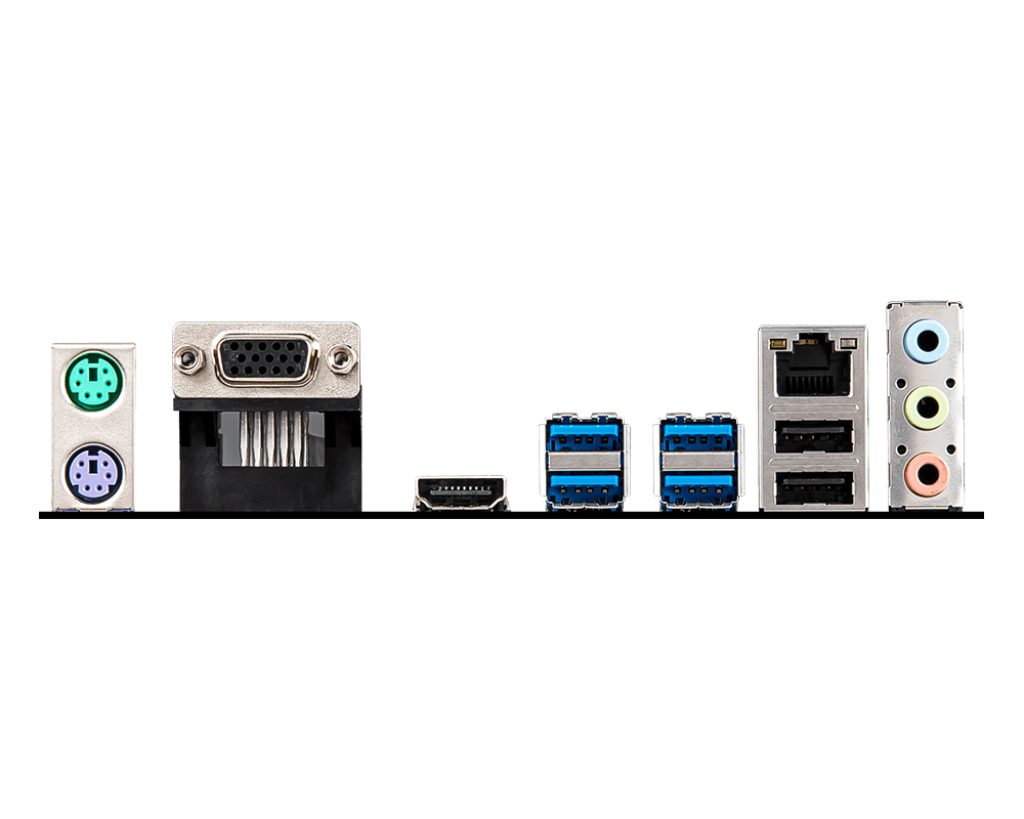

| Back panel ports | Mouse |
| VGA | |
| LAN | |
| HD | |
| Audio | |
| Connectors | |
| Keyboard | |
| HDMI | |
| USB 3.2 Gen 1 5Gbps Type-A | |
| USB 3.2 Gen 1 5Gbps Type-A | |
| USB 2.0 | |
| Dimensions | M-ATX Form Factor |
| 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm) | |
| MOUNTING | 6 mounting holes |
| Warranty | 3 Years |
