Description
| CPU | Supports AMD Ryzenô 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors |
| Support Socket AM4 | |
| Chipset | AMD B550 Chipset |
| Memory | 4x DDR4 memory slots, support up to 128GB |
| Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC | |
| Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE | |
| 1DPC 1R max speed 4400 MHZ | |
| 1DPC 2R max speed 3733 MHZ | |
| 2DPC 1R max speed 3866 MHZ | |
| 2DPC 2R max speed 3466 MHZ | |
| Dual channel memory architecture | |
| Supports non-ECC UDIMM memory | |
| Supports ECC UDIMM memory (non-ECC mode) | |
| Supports un-buffered memory | |
| Please refer www.msi.com for more information on compatible memory. | |
| Expansion Slots | 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) |
| 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode | |
| 2x PCIe 3.0 x1 slots | |
| The supported specification depends on installed processor.PCI_E4 will be unavailable when an M.2 SSD is installed in the M2_2 slot. | |
| Multi-GPU | Supports 2-Way AMD CrossFireô Technology |
| Onboard Graphics | 1x HDMIô 2.1 port, supports a maximum resolution of 4096x2160 @60Hz |
| Support HDCP 1.4 & 2.3 | |
| 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz | |
| Maximum shared memory of 16 GB | |
| Available for the processor with integrated graphics.Graphics specifications may vary depending on the CPU installed. | |
| Storage | AMD B550 Chipset |
| 6x SATA 6Gb/s ports | |
| 2x M.2 slots (Key M) | |
| M2_1 slot (from AMD processor) | |
| Supports PCIe 4.0/ 3.0 x4 1 | |
| Supports SATA 6Gb/s | |
| Supports 2242/ 2260/ 2280 storage devices | |
| M2_2 slot (from AMD B550 chipset) | |
| Supports PCIe 3.0x4 | |
| Supports 2242/ 2260/ 2280 storage devices | |
| The supported specification depends on installed processor. | |
| RAID | AMD B550 Chipset |
| Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| USB | AMD B550 Chipset |
| 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) | |
| 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) | |
| AMD Processor | |
| 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) | |
| 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel | |
| Audio | RealtekÆ ALC1220P Codec |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| LAN | 1x RealtekÆ RTL8125B 2.5Gbps LAN controller |
| Wireless LAN & Bluetooth | AMDÆ Wi-Fi 6E1 |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX | |
| Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports BluetoothÆ 5.22 | |
| Wi-Fi 6E 6GHz may depend on every countryís regulations and will be ready in Windows 10 version 21H1 and Windows 11Bluetooth 5.2 will be ready in Windows 10 version 21H1 and Windows 11. | |
| Internal Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | |
| 6x SATA 6Gb/s connectors | |
| 2x M.2 slots (M-Key) | |
| 1x USB 3.2 Gen 1 5Gbps Type-C port | |
| 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
| 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
| 1x 4-pin CPU fan connector | |
| 1x 4-pin water-pump fan connector | |
| 3x 4-pin system fan connectors | |
| 1x Front panel audio connector | |
| 2x System panel connectors | |
| 1x Chassis Intrusion connector | |
| 1x 4-pin RGB LED connector | |
| 2x 3-pin RAINBOW LED connectors | |
| 1xTPM module connector | |
| 1x Clear CMOS jumper | |

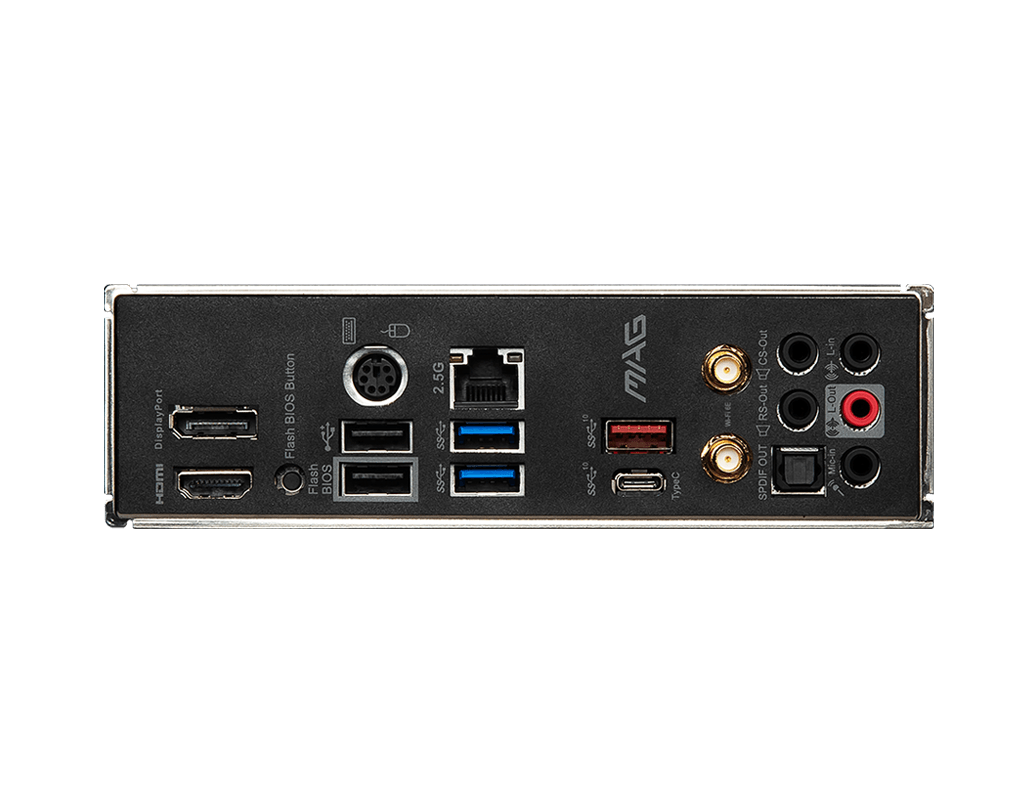

| Back Panel Ports | DisplayPort 1.4 |
| PS/2 Combo Port | |
| 2.5G LAN Port | |
| USB 3.2 Gen 2 10Gbps Type-A | |
| Wi-Fi / Bluetooth Antenna | |
| HD Audio Connectors | |
| HDMIô 2.1 Port | |
| Flash BIOS Button | |
| USB 2.0 Port | |
| USB 3.2 Gen 1 5Gbps Type-A | |
| USB 3.2 Gen 2 10Gbps Type-C | |
| Optical S/PDIF OUT | |
| Dimensions | Micro-ATX Form Factor |
| 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) | |
| Mounting | 8 mounting holes |
| Operating System | Support for WindowsÆ 11 64-bit, WindowsÆ 10 64-bit |
| Warranty | 3 Years |
