Description

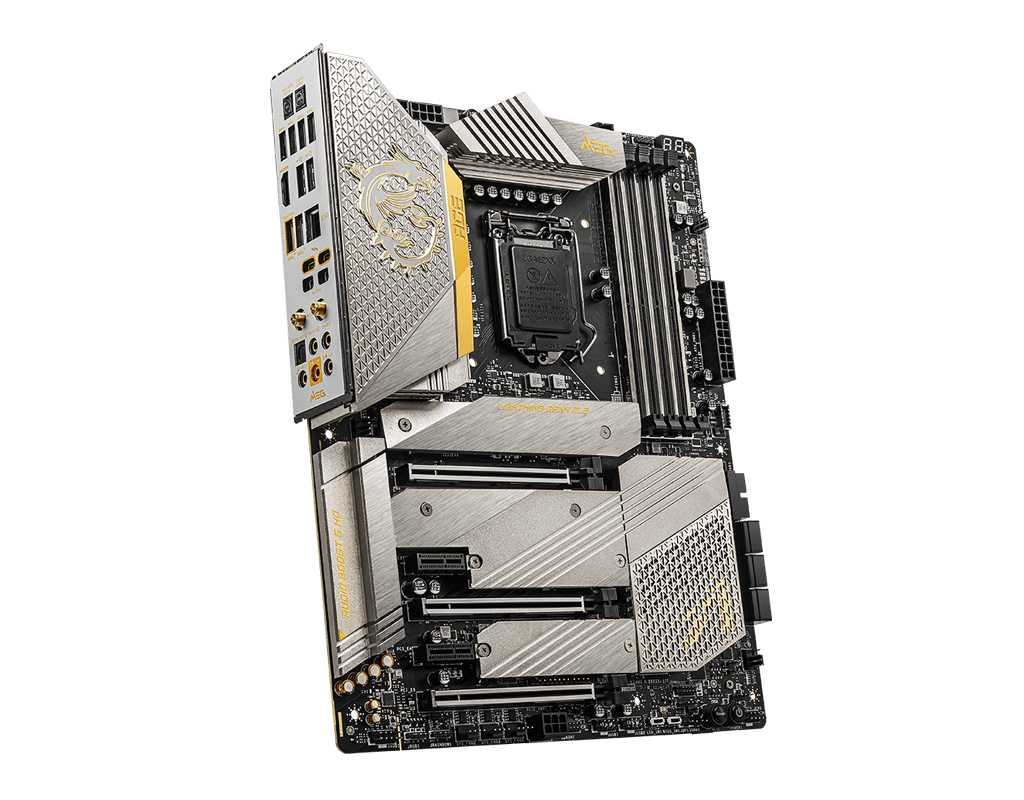

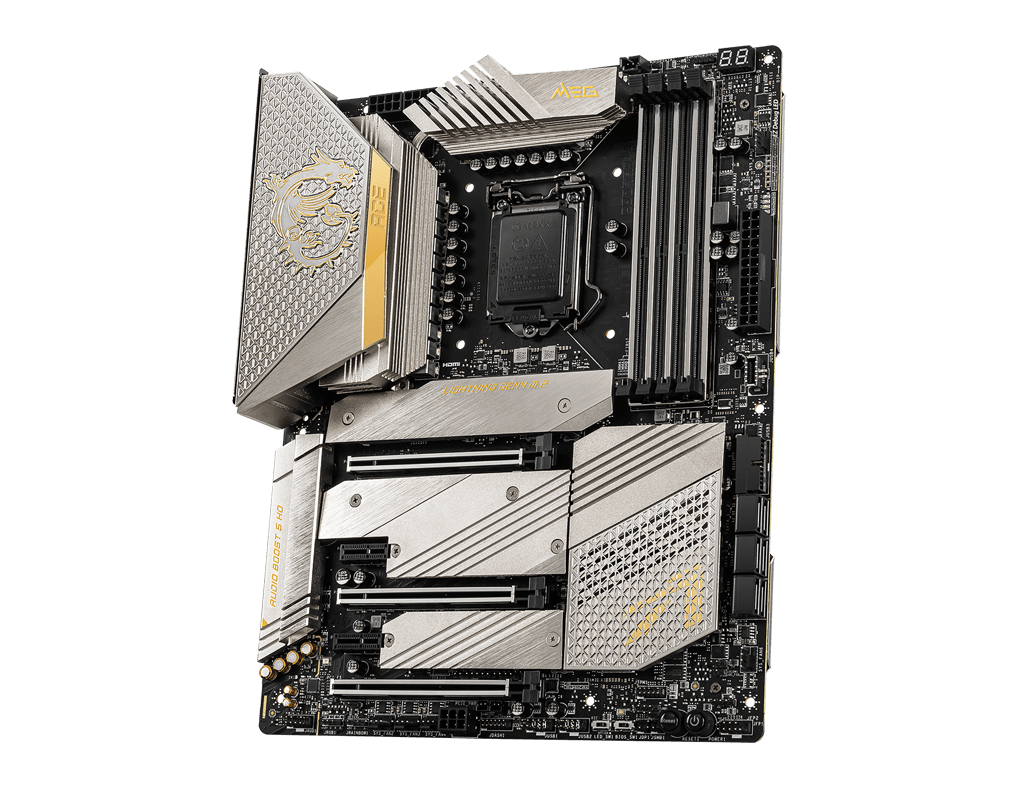

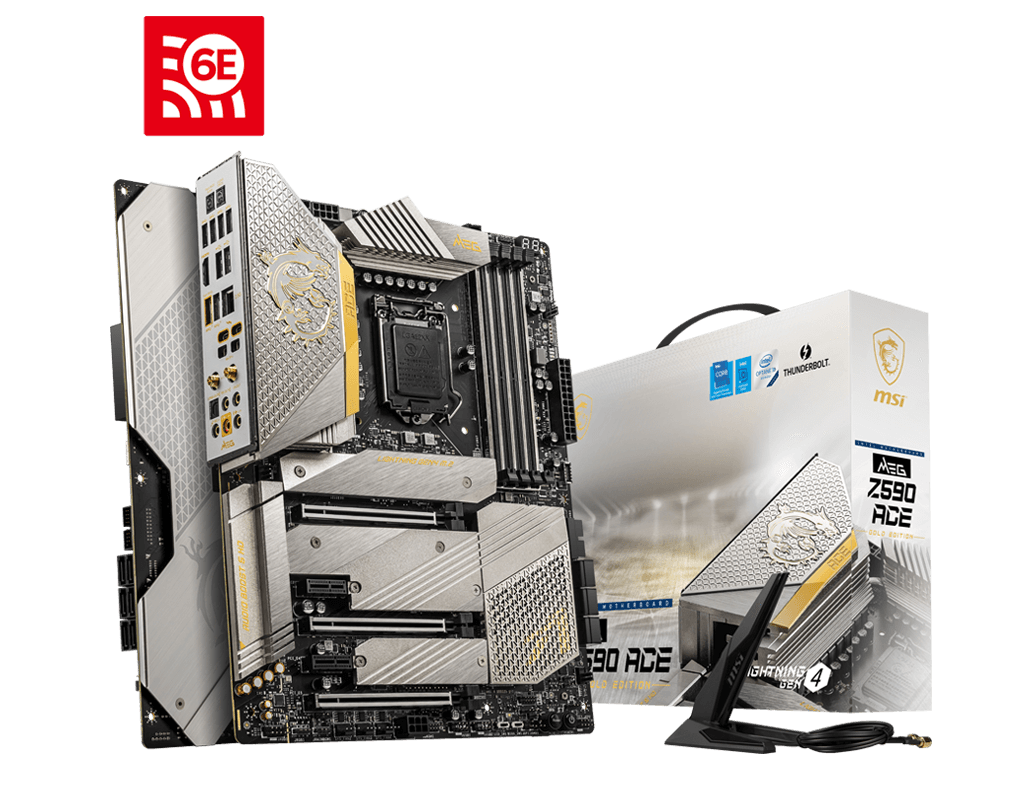

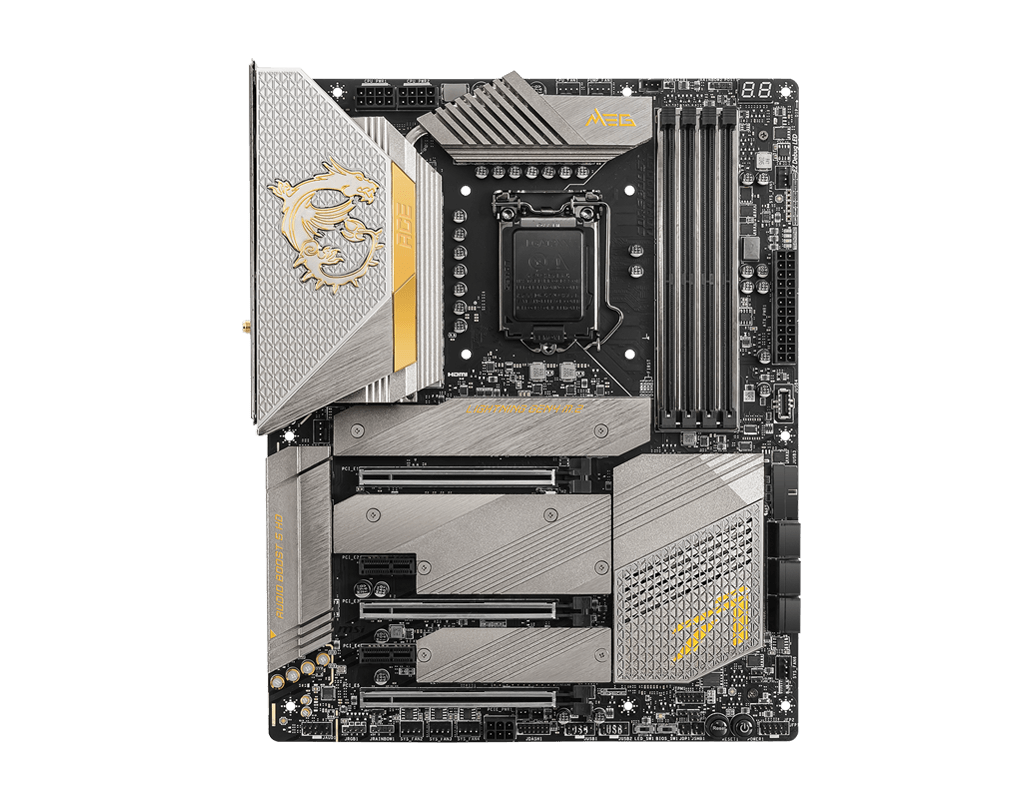

Model | MEG Z590 ACE GOLD EDITION |
Processor | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
Processor socket LGA1200 | |
Chipset | IntelÆ Z590 Chipset |
Memory | 4x DDR4 memory slots, support up to 128GB |
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen IntelÆ CPU (by JEDEC & POR) | |
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen IntelÆ CPU (by JEDEC & POR) | |
Max overclocking frequency: | |
1DPC 1R Max speed up to 5600 MHz | |
1DPC 2R Max speed up to 4800+ MHz | |
2DPC 1R Max speed up to 4400+ MHz | |
2DPC 2R Max speed up to 4000+ MHz | |
Supports Dual-Channel mode | |
Supports non-ECC, un-buffered memory | |
Supports IntelÆ Extreme Memory Profile (XMP) | |
Expansion Slots | 3x PCIe x16 slots |
Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 | |
PCI_E1 & PCI_E3 slots (From CPU) | |
Support up to PCIe 4.0 for 11th Gen IntelÆ CPU | |
Support up to PCIe 3.0 for 10th Gen IntelÆ CPU | |
PCI_E5 slot (From Z590 chipset) | |
Supports up to PCIe 3.0 | |
2x PCIe 3.0 x1 slots (From Z590 chipset) | |
Multi-GPU | Supports 2-Way NVIDIAÆ SLIô Technology |
Supports 3-Way AMDÆ CrossFireô Technology | |
Onboard Graphics | 1x HDMIô 2.0b with HDR port, supports a maximum resolution of 4K 60Hz |
Thunderbolt 4 | IntelÆJHL8540 Thunderboltô 4 Controller |
2x Thunderboltô 4 (USB-C) ports on the back panel | |
Support up to 40Gbps transfer rate with Thunderbolt devices | |
Support up to 20Gbps transfer rate with USB4 devices | |
Support up to 10Gbps transfer rate with USB 3.2 devices | |
Support up to 5V/3A ,15W power charging | |
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices | |
Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel) | |
Storage | 6x SATA 6Gb/s ports (from Z590 chipset) |
4x M.2 slots (Key M) | |
M2_1 slot (from CPU) | |
Available only on 11th Gen IntelÆ CPU | |
Supports up to PCIe 4.0 x4 | |
Supports 2242/ 2260/ 2280/ 22110 storage devices | |
M2_2, M2_3, M2_4 slots (from Z590 chipset) | |
M2_2 , M2_3 & M2_4 support up to PCIe 3.0 x4 | |
M2_2 & M2_3 support up to SATA 6Gb/s | |
M2_4 slot supports PCIe only. | |
Supports 2242/ 2260/ 2280 storage devices | |
IntelÆ Optaneô Memory Ready | |
Supports IntelÆ Smart Response Technology for Intel Coreô processors | |
SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. | |
SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot. | |
M2_4 bandwidth will switch from x4 to x2 when PCI_E5 slot is inserted. | |
Before using IntelÆ Optaneô memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. | |
RAID | Supports RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices |
Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices | |
USB | IntelÆ Z590 Chipset |
3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector) | |
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel, 2 ports available through internal USB connector) | |
2x USB 2.0 Type-A ports on the back panel | |
Hub-GL850G | |
4x USB 2.0 ports through internal USB connectors | |
Audio | RealtekÆ ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA |
7.1-Channel High Definition Audio | |
Supports S/PDIF output | |
LAN | 1x IntelÆ I225V 2.5Gbps LAN controller |
WiFi & Bluetooth | IntelÆ Wi-Fi 6E AX210 |
The Wireless module is pre-installed in the M.2 (Key-E) slot | |
Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz1 (160MHz) up to 2.4Gbps | |
Supports 802.11 a/ b/ g/ n/ ac/ ax | |
Supports BluetoothÆ 5.22, FIPS, FISMA | |
Wi-Fi 6E 6GHz depend on country regulations support and will be ready in WIN10 21H1. | |
Bluetooth 5.2 will be ready in WIN10 21H1. | |
Internal connectors | 1x 24-pin ATX main power connector |
2x 8-pin ATX 12V power connectors | |
1x 6-pin PCIE power connector | |
6x SATA 6Gb/s connectors | |
4x M.2 slots (M-Key) | |
1x USB 3.2 Gen 2 10Gbps Type-C connector | |
1x USB 3.2 Gen 1 5Gbps connector (supports additional | |
2 USB 3.2 Gen 1 5Gbps ports) | |
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
1x 4-pin CPU fan connector | |
1x 4-pin water-pump fan connector | |
6x 4-pin system fan connectors | |
1x Front panel audio connector | |
